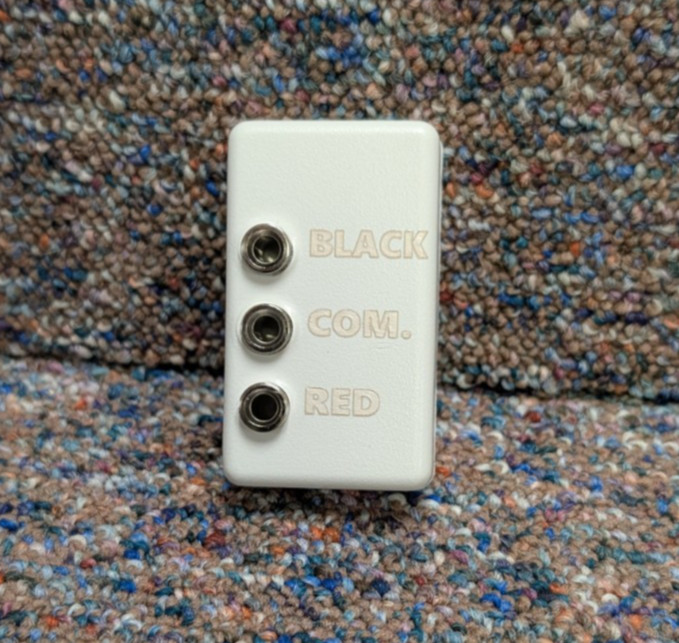

VintageTEK Curvebug - Dual Curve Tracer Debugging Aid

The CurveBug interfaces via USB to a Windows PC. It drives a weak signal onto the tested devices with the result graphically displayed on the PC. Connect the CurveBug to an un-powered circuit. As the CurveBug is connected to your PC's ground ESD hazards are mitigated.
