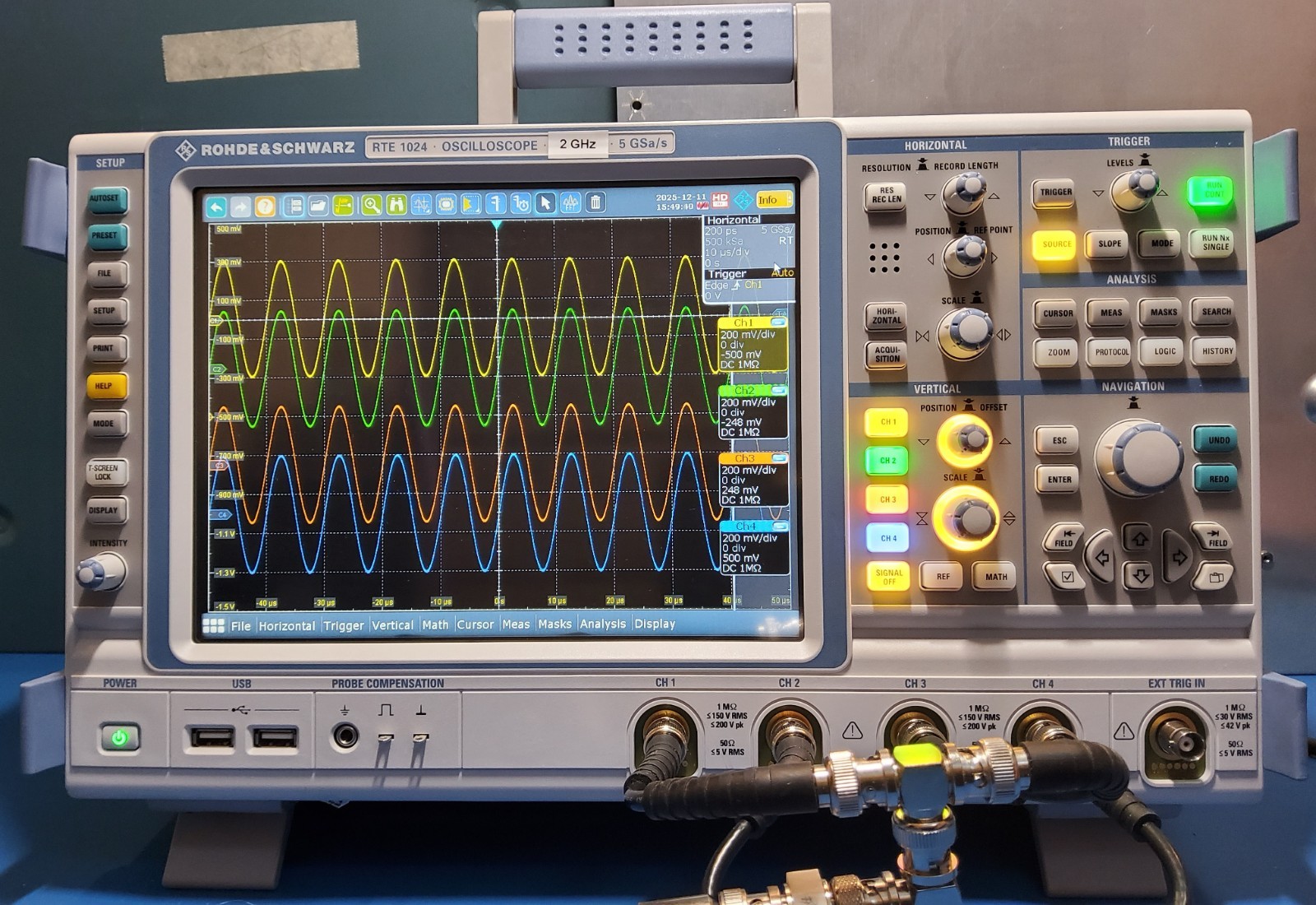

Rohde & Schwarz RTE1024 Oscilloscope "2GHz" 5Gs/s, 50M/ch many options = RTE1204

Rohde & Schwarz RTE1024 Oscilloscope 2GHz upgrade, 5Gs/s, 50MS/ch record length and many software options. Original SSD drive and Win7 Embedded. 3dB analog bandwidth 2GHz, 5GSa/s each channel; 50M point per channel (100M for 2 channels; 200M for one channel) >1000000 waveform/sec acquisition rate. 2GHz bandwidth on all input sensitivities 0.5mV/div to 1V/div @ 50 ohm Time base accuracy +/-4ppm , calculated rise time 175ps (for 2GHz bandwidth), input VSWR < 1.4 RMS Noise floor 0.42mV@10mV/div, 3.25mV@100mV/div, 17.4mV@500mV/div Vertical resolution 8bits, in high definition mode up to 16bits (bandwidth is reduced but sampling rate is not) Trigger sensitivity 10^-4 division from DC to 2GHz at all vertical scales. Trigger jitter < 1ps RMS Very advanced digital assisted triggering, Advanced Math and spectrum analysis just like a spectrum analyzer, user defined math functions, advanced measurements in time and frequency domains. Trend plots and histograms Triggering on and decoding of various serial communication protocols (I2C,SPI,LIN,CAN,FlexRay, CAN-FD,UART,RS232,USB 2.0,SENT,Manchester and NRZ) 10.4 inch XVGA (1024x768) with resistive touchscreen Options that are installed on this scope: Option B102: Acquisition memory 50M sample per channel; 100M for 2 channels; 200M for one channel Option B204: Upgrade RTE1024 to 2GHz bandwidth Options K1,K2,K3,K4,K8,K9,K10,K50,K57,K60,K63: Serial triggering and decoding of UART/RS232,485/I2C/SPI/CAN/LIN/FlexRay/CAND-FD/100BASE-T1/ Manchester/NRZ/SENT/Ethernet/USB1.0,1.1,2.0,HSIC/USB-PD Option K17: High Definition Mode Option K18: Spectrum Analysis (Spectrogram, peak markers, spectrum measurements, etc...) Option K31: Power Analysis Please checkout my other items here Condition of the device The scope is used but in pristine condition and works perfectly. Light scuffs and scratches due to normal use exist. The front panel looks flawless. Connectors are in good shape and all buttons and knobs and touchscreen work perfectly fine. Measurements are spot on Hard drive is original and it is SSD. Running Windows 7 Embedded Please review all photos carefully. If you have any question, please don't hesitate to ask. Usually I answer very quickly Passed self tests and self alignment many many times (see pictures) I dont know when the scope was calibrated last time. Terms of the sale In case the item does not work upon arrival (out of the box) as described above and shown in pictures, please contact me first. We will work it out to your satisfaction. Other than that there are no long term guarantees or warranties expressed or implied. This is a USED item. In case of a return, buyer pays for the shipping both ways . In case of a return, the item's case must not be opened. Only the scope alone is for sale . cables, connectors, probes, or any other accessories or other test equipment shown in the pictures are NOT included in this auction Shipping Shipping is done only through UPS or Fedex (NO Canada Post). No APO shipping I ONLY ship to buyer's eBay registered address . No exceptions Item will be shipped within 3 business days after payment is received For buyers outside Canada, import taxes, tariffs, custom fees or brokerage fees may be applied and must be paid separately by the buyer before taking the delivery of the item . These fees are not included in the shipping fee or item price. Payment Payment must be received within 3 business days after purchase
